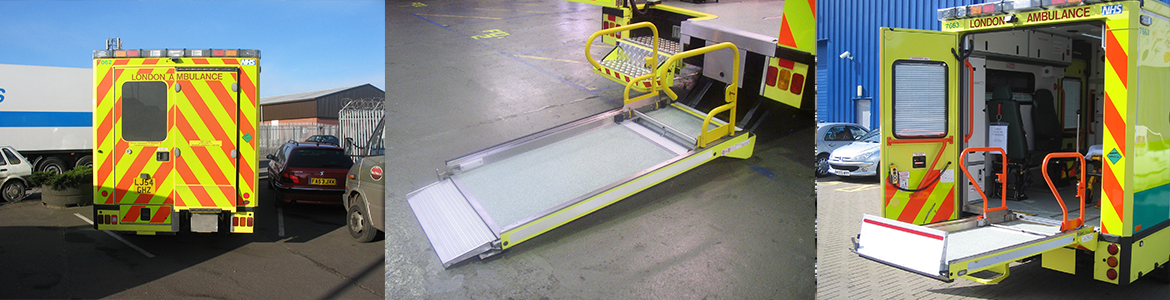

Ambulance Tail Lifts & Ramps

Hi-Spec Tail Lifts provide patient lifts which are in use with a large number of ambulance authorities in the UK. Working closely with the major body builders, the tail lifts are designed with ambulance authority needs in mind.

Hi-Spec offer a 24/7 support system to our customers 365 days a year. Whether you require warranty or non-warranty repairs, our trained engineers are on call to assist. We also supply GENUINE manufacturer's spares which can be ordered directly.


FLATLIFT

Unlike traditional cantilever tail lifts the HS5 Flatform lift with its unique flat platform, keeps the patient horizontal at all times, eradicating the need to tilt the platform at ground level.

This combined with automatic front and rear patient trolley stops improves transfer of patients to and from the ambulance. The lift can be fitted behind the access door into the ambulance. The lift is simple to operate and is supplied with hinged passenger safety gates. This lift can be used as a rear closure removing the need to fit a separate access door. It can be supplied with sophisticated interlocks which prevent incorrect or inadvertent operation, reducing the potential for accidents or damage.


Hi-Spec 350kg Patient Tail Lift

With a load centre of 1100, the Hi-Spec 350kg Patient Tail Lift is the most technologically advanced lift available on the market.

The platform of the lift can form the rear door of the vehicle or can be supplied to stow behind a conventional door.

Features of this model include:
- Twin or single hand rails finished in yellow grip with platform mechanical and electric interlock
- Sides of the platform have up-stand of 40mm deep running the length of the platform
- The surface of the platform is coated with Lino to match the interior of the ambulance
- Both front and rear stops for the stretcher trolley are automatically deployed
- The underside of the platform is flush for fitting decals
- Automatic tilt at ground level only

Hi-Spec 500kg Patient Tail Lift

Designed to suit the larger Megasus stretch trolley, the Hi-Spec 500kg Patient Tail Lift has a load centre of 1100mm and is stowed behind a conventional door.

The lift mechanism is supplied with 12v or 24v power pack, with manual override and hand pump. There is a pre-wired wander lead with safety interlocked operation for all hydraulic functions.
- Platform size 750mm to 1000mm wide x 1750mm long
- Aluminium platform with anti-skid surface
- Twin or single hand rails finished in yellow grip with a mechanical lock
- The underside of the platform is flush for fitting decals
- Automatic trolley stop at the leading edge of the platform
- Sides of the platform have up-stand 40mm deep the running length of the platform
- LED light to the external side of the platform
- Bridge plate
- Automatic tilt at ground level only

Fabricated, and Formed Components

As part of the WEC Group, Hi-Spec Tail Lifts also produce a large number of fabricated, lasered and pressed components which go into the build of Front line ambulances.

These are normally made to suit the body constructors drawings and are built using a variety of materials, including aluminium, stainless and mild steels of all grades steel. These fabricated components are supplied in base metal, powder coated or plated as required.
